Sign Engineer: Engineering Stamp for Signs and Engineered Sign Drawings
A licensed P.Eng. sign engineer stamps your sign drawings, prepares the calculations, and completes the General Review and the engineer's report.
Sign engineering costs from $700 to several thousand dollars, based on the scope. We send a fixed-fee quote in 24 hours.
- From $700
- Stamped in 3 to 5 days
- P.Eng. + Certificate of Authorization
- Channel letters to pylons
What does a sign engineer do?
A sign engineer is a Professional Engineer (P.Eng.) who designs and checks the structure of a sign: the supports, the connections, the foundation and the attachment to the building. The engineer then applies an engineering stamp to the drawings and calculations. The stamp means the engineer takes legal responsibility for the structural design.
Sign drawings without a P.Eng. stamp are not engineered drawings. If the Ontario Building Code requires engineering for your sign, the municipality will not issue the sign permit until each structural page has the stamp, the signature and the date.
Rouge Hill Consulting (RHC) provides sign engineering in-house. Our engineers hold P.Eng. licences, carry professional liability insurance, and hold a Certificate of Authorization from Professional Engineers Ontario (PEO).
When does a sign need an engineering stamp?
Under the Ontario Building Code (OBC 2024), a sign needs a Professional Engineer in these four cases.
The sign weighs more than 115 kg
Total installed weight, including the frame, cabinet, brackets, anchors and hardware. The sign needs an engineering stamp and a General Review.
The sign is on a parapet wall
Parapet walls extend above the roof and are often not designed to carry loads. The sign needs an engineering stamp and a General Review.
A roof sign face is larger than 10 m²
Large roof signs get high wind and uplift loads. The sign needs an engineering stamp and a General Review.
A ground sign is taller than 7.5 m
The engineer must do a General Review to check the foundation and the stability of the sign.
These rules come from OBC 2024, Volume 1, Division C, Section 1.2. They apply in all of Ontario, in addition to the municipal sign by-law. Some municipalities also ask for an engineering stamp on signs below these limits. For details, read When Do You Need an Engineer for Your Sign Project in Ontario?
In Toronto, engineer-stamped drawings also qualify a sign permit for the City's two-day Fast Track, when the application has no deficiencies and needs no other approvals.
Channel letter engineer stamp
Channel letters are often light, but many installations still need a channel letter engineer stamp. You need one when:
- The letters are attached to a parapet wall. On many retail plazas, the sign band above the storefront is a parapet.
- The letters, the raceway and the hardware together weigh more than 115 kg.
- The municipality asks for engineering for the wall type, for example steel stud, curtain wall or old masonry.
We check the raceway or backer, the brackets, the anchors and the wall. Then we stamp the channel letter drawings for the permit.
What is included in engineered sign drawings
Our engineered sign drawings are ready for the permit application.
Structural analysis
Wind loads to OBC Part 4, dead loads, snow loads where they apply, and seismic loads for the site.
Stamped structural drawings
Each page has the P.Eng. stamp, signature and date. The drawings show member sizes, connections, anchors and the foundation design.
Stamped calculations
A full calculation package to the OBC and CSA standards.
Commitment to General Review
Where the OBC requires it, the engineer and the owner sign it, and it goes with the permit application.
General Review and field review report
The engineer visits the site during installation and confirms the sign agrees with the engineered drawings.
If we also prepare your sign permit drawings or your sign permit application, the engineering goes into the same submission. You do not need to coordinate two firms.
Engineer's report for a sign
An engineer's report for a sign is a stamped letter or report from a P.Eng. about a sign that exists or that was installed.
Field review report
After a General Review, the engineer confirms the sign was installed to the stamped drawings. The City needs this report to close the permit.
Structural condition report for an existing sign
The engineer inspects the sign, its attachment and its supports, and confirms if the sign is safe or lists the repairs. Use it for a permit for an existing sign, after a Notice of Violation, or before you reface or relocate a sign.
How much does sign engineering cost?
We give a fixed-fee quote before we start. These items set the price:
- The sign type: channel letters, a wall cabinet, a projecting sign, a pylon or a roof sign.
- The size and weight of the sign.
- The attachment: wall type, parapet, roof or a new foundation.
- The number of signs and sites.
- General Review site visits and field review reports.
- Rush delivery.
Send your sign drawings, site photos and the project address to projects@rougehillconsulting.com or call +1 (437) 833-7817. We send a quote in 24 hours and deliver stamped drawings in 3 to 5 business days.
Signs we engineer
Pylon and pole signs
Single and multi-column structures, drilled pier foundations and base plates.
Monument and ground signs
Concrete footings, masonry cladding, steel or aluminum frames.
Wall and fascia signs
Attachment to concrete, concrete block, brick veneer, steel stud, wood frame and curtain wall.
Channel letters and cabinet signs
Raceways, brackets and the connection to the building.

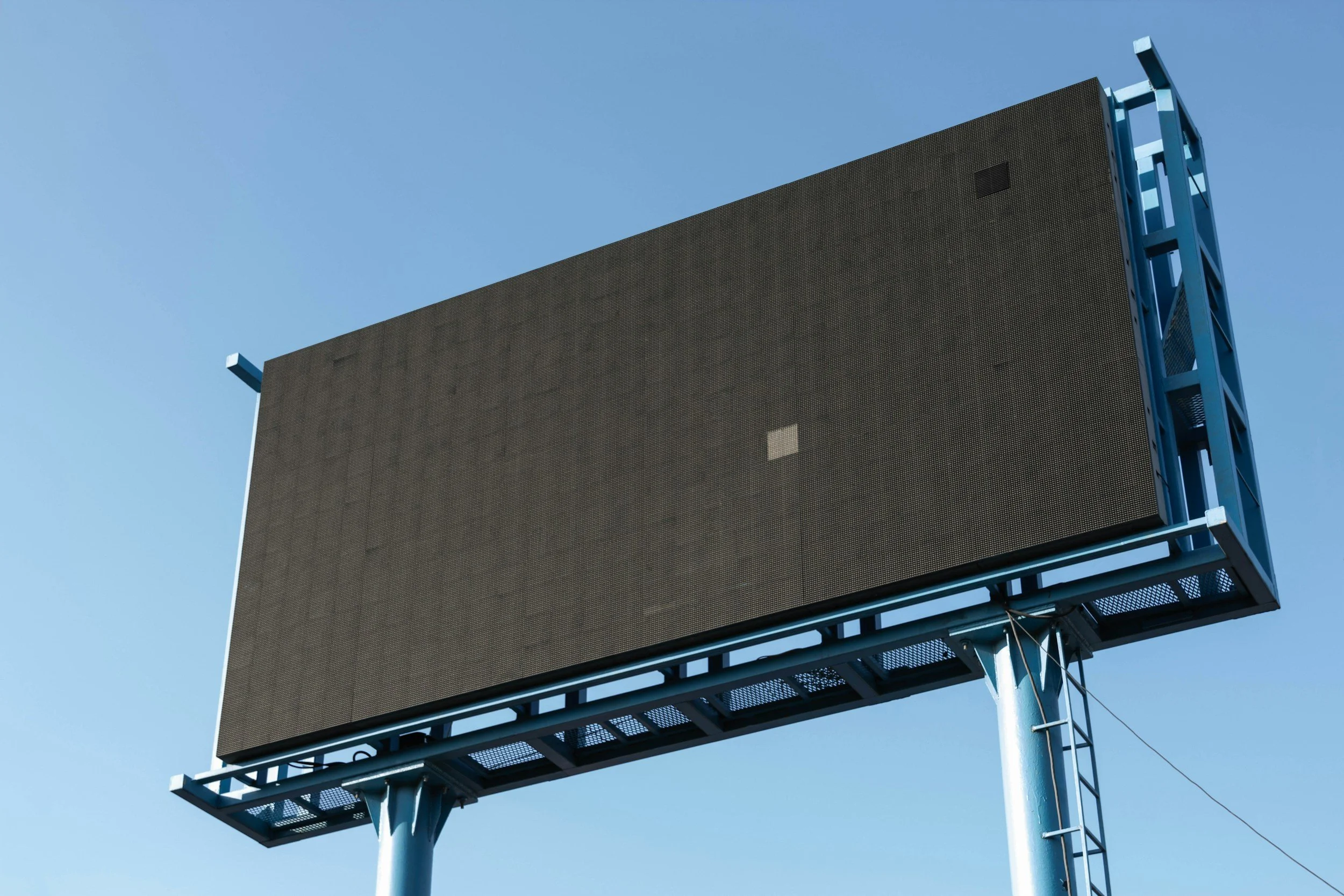

Roof signs and billboards
Load transfer into the roof structure, wind uplift and snow loads.
Digital and LED signs
Heavier dead loads and vibration.
Projecting (blade) signs
Outriggers, wall anchors and eccentric loads.
Awnings and canopies
Fabric systems, metal frames and attachment details.
Why use a sign engineer, not a building engineer
Most structural firms design buildings. Signs have different problems.
- High wind area for low weight. Overturning and vibration control the design.
- Sign materials. Aluminum extrusions, formed sheet metal and acrylic faces are not in standard steel design tables.
- Old buildings. Signs attach to walls with unknown construction or damaged masonry.
- Fabrication. A sign engineer specifies sections that sign shops can buy and build.
- Permits. A sign permit needs structural approval and sign by-law approval. We check both, so the drawings do not fail on the by-law.
Our sign engineering process
Intake and quote
Send us shop drawings, design drawings or a sketch, site photos and the address. We confirm if engineering is required and send a fixed-fee quote.
Design and engineered drawings
We calculate the loads, design or check the members and connections, design the foundation where needed, and stamp the drawings and calculations.
Permit submission
We supply the engineered drawings in the format your municipality requires. If we handle the sign permit, the engineering goes into the same application.
General Review and engineer's report
Where the OBC requires a General Review, our engineer attends the installation and issues a field review report to close the permit.
Sign engineering across Ontario and Canada
The OBC sets the engineering rules in Ontario, but each municipality reviews sign permits in its own way. We know the submission formats and common deficiencies in Toronto, Mississauga, Brampton, Ottawa and the rest of the Greater Toronto Area. We also engineer national franchise rollouts and multi-location sign programs. See our national franchise permit program.
Frequently asked questions
What does a sign engineer do?▾
A sign engineer is a licensed Professional Engineer who designs and checks the structure of a sign. The engineer stamps the sign drawings and calculations for the permit, and does the General Review on site where the Ontario Building Code requires it.
Does every sign need an engineering stamp?▾
No. In Ontario, a sign needs an engineer when it weighs more than 115 kg, is attached to a parapet wall, is a roof sign with a face larger than 10 m², or is a ground sign taller than 7.5 m. Some municipalities ask for an engineering stamp on smaller signs too.
How much does sign engineering cost?▾
Sign engineering costs from $700 to several thousand dollars. The price depends on the sign type, size, attachment, foundation design, number of signs and General Review visits. We give a fixed-fee quote before we start.
Do channel letters need an engineer stamp?▾
Channel letters need an engineer stamp when they are attached to a parapet wall, or when the letters, raceway and hardware weigh more than 115 kg. Some municipalities also ask for a stamp for certain wall types.
What is an engineer's report for a sign?▾
It is a stamped report from a Professional Engineer about an installed sign. A field review report confirms the sign agrees with the stamped drawings and closes the permit. A structural condition report confirms if an existing sign is safe, or lists the repairs it needs.
How long does it take to get engineered sign drawings?▾
Most engineered sign drawings take 3 to 5 business days after we receive complete drawings and site information. Rush delivery is available. Complex structures can take longer, and we confirm the timeline in the quote.
Can my sign company provide the engineering?▾
Yes, if it has a licensed engineer. The engineer must hold a P.Eng. licence in the province, carry professional liability insurance and hold a Certificate of Authorization. If your sign company has no engineer, we provide the engineering.
What do you need from me to start?▾
Send shop drawings or a sketch with the sign size, materials and weight, the mounting method, site photos and the project address. Building drawings or a structural report help us work faster.
